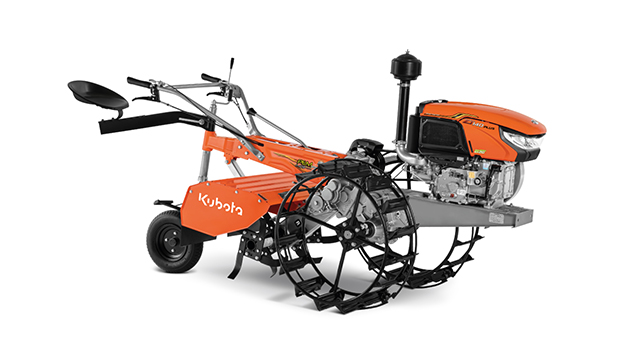

PEM1408Plus Rotary Tiller
The trusted power for optimal quality
Powered by a ZT Plus engine with 14 horsepower, it comes with a rotary tiller attachment that finely tills the soil,
making your work efficient.
It's ideal for personal use on land sizes between 5 to 20 rai, suitable for tilling both dry soil and wet areas,
as well as for weeding in sugarcane and cassava rows.
Starting price
138,400 Baht
horsepower
14.00 horsepower
Calculate annuity
Test drive
DealerGallery PEM1408Plus Rotary Tiller
Application features
Efficiency
-
![PEM1408Plus Rotary Tiller]()
Powerful and Fuel saving
Use 14 horsepower KUBOTA diesel engine (ZT140Plus) with direct injection as the source of power.
-
![PEM1408Plus Rotary Tiller]()
Kubota Rotary for quick and fine soil tilling.
- Rotary consist of 16 L-shape rotary blades with the optimal angles to allow for fine soil tilling with maximum depth at 12 cm in dry field and 15 cm in paddy field.
- 80 cm width rotary can be extended up to 100 cm
with the extension shaft*
*Optional accessory separately sold. -
![PEM1408Plus Rotary Tiller]()
High air cleaner adaptor
- To protect dust and mud splash into the air cleaner.
- Help to extend the engine life. -
![PEM1408Plus Rotary Tiller]()
Durable gear case
Made from Special Cast Iron (SCI) which offers durability with impact resistance and reliable quality.
-
![PEM1408Plus Rotary Tiller]()
Robust cage wheel
Cage wheel with diameter at 800 mm. and 16-wheel blades.
-
![PEM1408Plus Rotary Tiller]()
Large Rear Wheel
Inflatable rubber wheels measuring 40 cm in diameter and 10 cm in width provide enhanced maneuverability. Additionally, the reinforced wheel drum improves strength and effectively reduces shock during operation.
-
![PEM1408Plus Rotary Tiller]()
Comfortable seat
Seat height can be adjusted to be fit for each driver.
Better rear wheel control and nimble turning radius. -
![PEM1408Plus Rotary Tiller]()
Rubber foot pedal
Rubber pad at the foot pedal can prevent slipping and
the angle of foot pedal can be adjusted to be fit with
each driver.
Specifications
| Description | ||
|---|---|---|
| Engine | ZT140DI Water-cooled horizontal 4-stroke diesel engine | |
| Power transmission | 3 belts (B notch) | |
| Main clutch | Multiple dry type (4 plates) | |
| Main speed shift level | 3 forward, 1 reverse | |
| Range speed shift level | 2 levels (high-low) | |
| Total speed shift level | 6 forward, 2 reverse | |
| Steering clutch | 14T internal gear insert system (each mounted by nut) | |
| Brake system | Internal expansion pad inside the drum | |
| Dimension (W x L x H) | 109 -114 cm x 242 cm x 107 cm | |
| Engine weight (kg) | 112 | |
| Total machine weight when attached with the rotary, seat, and paddy wheel (kg) | 360 | |
