Tractor
L-Series

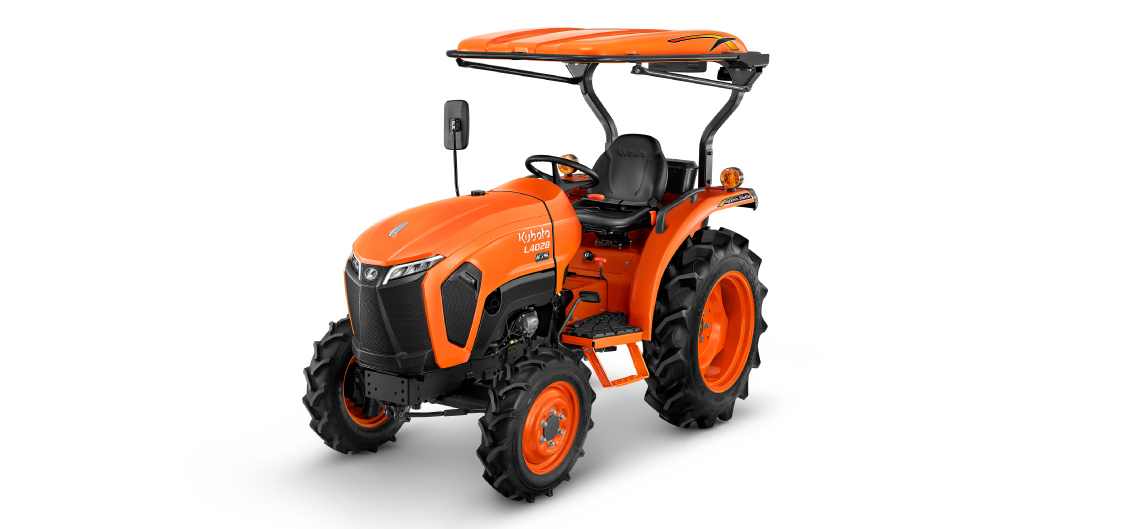

L4028
New design, More stylish than ever, More agile than you think
The new L-series tractor, new design with LED headlights that provide greater brightness, enhancing visibility and confidence for day and night operations. Additionally, the new seat with seat suspension support enhances comfort, reducing fatigue during work.
Starting price
525,000 Baht
horsepower
40.00 horsepower
Calculate annuity
Test drive
Dealer Application features
Efficiency
-
![L4028]()
New! Brighter light with all-around LED lighting.
LED Light
At the front, sides, and back of the canopy have a sleek design and can be turned on in 2-modes: Daylight and normal Full light to improve visibility whether day or night. -
![L4028]()
Powerful engine, delivering maximum horsepower.
40-horsepower, 3-cylinder, 4-cycle diesel engine with direct injection combustion and 1,826 cc displacement, this engine delivers maximum horsepower for demanding tasks. With piston-head ignition, combustion efficiency is enhanced, reducing engine burn temperatures and ensuring responsive acceleration even in extreme heat
-
![L4028]()
Compatible with many implements for versatile operation
With PTO speeds of 540 RPM and 750 RPM, L4028 meet demands of high-quality tasks, such as achieving fine soil texture when used with rotary or producing fine mist with multipurpose sprayer.
-
![L4028]()
All speed requirements for any task
8 forward and 8 reverse gears, the L-series allows optimal speed selection, supporting both paddy and dry field work.
-
![L4028]()
Maintaining agility, a signature characteristic of Kubota tractors
Synchro Shuttle gear, L4028 allows forward and reverse changes without stopping, while the gear lever is conveniently positioned beneath the steering wheel for easy reach, making gear changes smooth and efficient.
-
![L4028]()
New! Even more robust with front dozer and front guard
Specifically designed for Kubota tractors, this feature helps reduce risk of damage to bonnet and does not obstruct front headlights
Convenient
-
![L4028]()
New! Reduces fatigue with a seat featuring shock- suspension support.
new seat is ergonomically designed to support the driver’s posture, with five adjustable positions for forward and backward movement. The seat suspension system absorbs shocks during operation in rough terrain, reducing fatigue while using the tractor.
-
![L4028]()
New! Enhanced performance with the air filter cleaning alert system.
The air filter cleaning alert system notifies you when the air filter is clogged during operation, reducing the risk of engine overheating and enabling more effective tractor maintenance.
-
![L4028]()
New! Redesigned shape and angle of the exhaust muffler.
The new exhaust muffler shape and adjusted angle help direct engine heat away, reducing the risk of overheating for the operator during use.
Durable
-
![L4028]()
New! Enhanced strength at the three-point hitch attachment.
Reinforced strength at the lift arm connection point increases durability, allowing for better support of heavier attachments.
-
![L4028]()
Strong and durable, capable of withstanding impacts effectively.
Durable and robust, with gearbox casing, clutch housing, rear axle housing, and cylinder head made from specially hardened cast iron, designed to withstand rigorous operations.
Specifications
| Engine specification | ||
|---|---|---|
| Diesel Engine | Direct injection, Vertical, Water-Cooled 4 cycle diesel | |
| horsepower | (horsepower) | 40.00 |
| Cylinder volume | (cc.) | 1,826 |
| Fuel capacity | (liters) | 40 |
| Specifications | ||
|---|---|---|
| Type Gear | Constant mesh | |
| Number of gears | 8 forward gears / 8 reverse gears | |
| Turning radius (use brakes) | (meter) | 2.5 |
| PTO speed (engine rpm) | (rpm) | 540 at Engine speed of 2,376 / 750 at Engine speed of 2,596 |
| Weight (Tractor only, not including counterweight) | (kilograms) | 1,277 |
| Front bumper – rear wheel | (millimeter) | 2,920 |
| Width (rim of the rear tire, left-right) | (millimeter) | 1,422 |
| Height under the car | (millimeter) | 355 |
Implement L4028
| Standard implement | Series | Price | View More |
|---|---|---|---|
Special dozer |
Special dozer SD142 | 60,000 Baht |  |
Rotary |
Rotary RX165E | 57,600 Baht | |
Rotary |
Rotary RX165E-S | 59,600 Baht | |
Disc plow |
Disc plow DP223C-Heavy Plus | 39,500 Baht | |
Disc harrow |
Disc harrow DH225C-Heavy | 33,400 Baht | |
Slasher |
Slasher SX135 | 59,000 Baht | |
Sugarcane Fertilizer Ripper |
Sugarcane Fertilizer Ripper SF440 | 41,500 Baht | |
Sugarcane Fertilizer Ripper |
Sugarcane Fertilizer Ripper SF440 Pro | 48,500 Baht | |
Cassava Planter |
Cassava Planter L-Series CP100 | 67,500 Baht | |
Cassava Planter |
Cassava Planter with Fertilizer L-Series CP100F | 79,500 Baht | |
Boom Sprayer Eco |
Boom Sprayer Eco BS350 | 41,000 Baht | |
