Diesel Engine
Series ZT PLUS

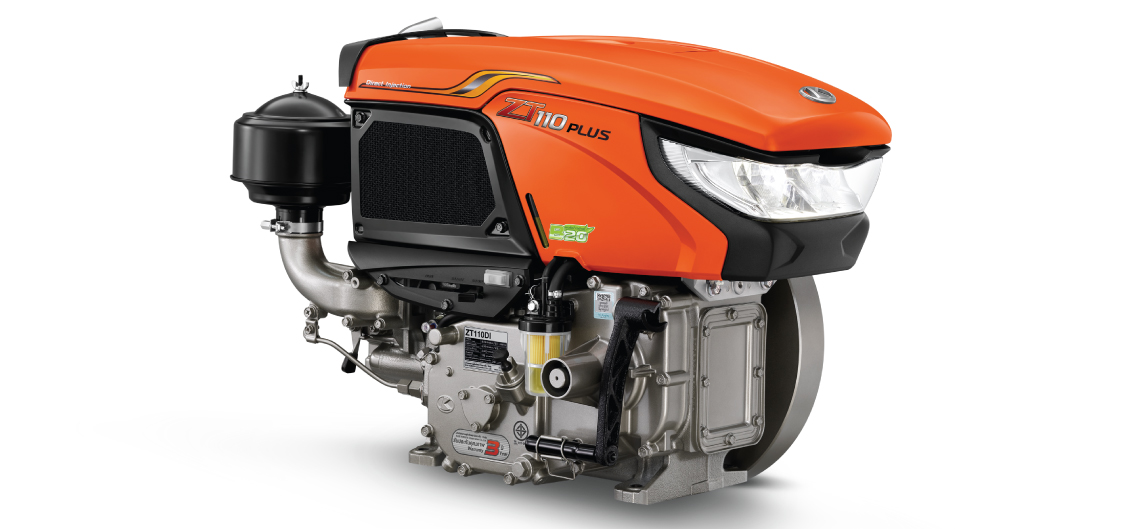

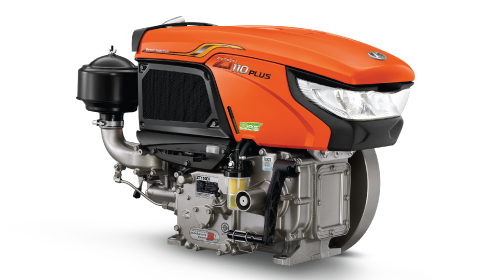

Kubota Diesel Engine ZT110Plus
- 11-horsepower diesel engine with TVCS Pre-combustion swirl chamber
- Strong, durable, and ready for tough, heavy-duty work
- Can be used as a power source for a variety of tasks such as water pumping, soil preparation for agriculture, transportation, electricity generation, and more
Starting price
42,600 Baht
Calculate annuity
DealerGallery Kubota Diesel Engine ZT110Plus
Application features Kubota Diesel Engine ZT110Plus
Efficiency
-
![Kubota Diesel Engine ZT110Plus]()
Powerful
11-horsepower diesel engine with TVCS Pre-combustion swirl chamber
-
![Kubota Diesel Engine ZT110Plus]()
Durable steel fuel tank built tough for continuous, heavy-duty operation.
- High-quality steel fuel tank (SPCE) with a capacity of 10.5 liters for continuous operation
- Wide stainless steel fuel tank cap, easy-to-grip design for convenient refueling -
![Kubota Diesel Engine ZT110Plus]()
Thick steel grille to protect the radiator and fan from damage.
- SPCD steel grilles on both the radiator and fan sides help protect engine components from impact or accidents during operation
- Increased grille density on the radiator side helps trap dust and prevent clogging in the radiator system, reducing the risk of overheating -
![Kubota Diesel Engine ZT110Plus]()
Engine cover, strong and designed for a modern look
Modern design with reinforced internal aluminum structure helps reduce potential damage to the radiator and internal components. Enlarged rubber dampers under the top cover help absorb impact and minimize vibration during operation.
-
![Kubota Diesel Engine ZT110Plus]()
Reinforced mounting points for the accelerator frame.
Reinforced with three mounting points to reduce vibration during operation.
-
![Kubota Diesel Engine ZT110Plus]()
LED headlamp
Equipped with LED light with high/low beam adjustment mode for safe operation at night.
-
![Kubota Diesel Engine ZT110Plus]()
Transparent fuel level guage
Fuel level can be easily monitored through a clear indicator.
-
![Kubota Diesel Engine ZT110Plus]()
3-year warranty.
Guaranteed quality with a 3-year warranty.
Specifications
| Description | ||
|---|---|---|
| Type | Water-cooled 4-stroke horizontal diesel engine | |
| Number of pistons | 1 | |
| Bore size x stroke | (millimeter x millimeter) | 92 x 90 |
| Stroke volume | (cubic centimeter) | 598 |
| Maximum engine power | (hp / rpm*) | 11.0/2400 (8.10/2400) |
| Continuous engine power | (hp / rpm*) | 9.5/2400 (7.00/2400) |
| Rated Rotation Speed | (rpm) | 2,400 |
| The specific fuel consumption rate at the specified power continuously | (g/hp/hour) | 269 |
| Compression ratio | 20.5:1 | |
| Maximum torque | (kg-force meter at r/min) | 4.0/1600 (39.2/1600) |
| Cooling water capacity | (liters) | 2.2 |
| Fuel capacity | (liters) | 10.5 |
| Lubricant capacity | (liters) | 2.8 |
| Fuel type | Automotive Diesel Oil (SAE No.2 - D), Biodiesel fuel (B7~B20) | |
| Lubricant type | SAE 10W-30, SAE 10W-40 | |
| Combustion system type | TVCS (Swirl Pre-Combustion Chamber) | |
| Type of air filter | Wet-type (Oil bath type) | |
| Cooling system | Pressurized radiator | |
| Lubrication system type | Trochoid pump | |
| Engine start system type | Double speed hand starting | |
| Direction of rotation of engine start | Turn counterclockwise when facing the flywheel. | |
| Engine weight | (kilograms) | 110 |
| Gross weight | (kilograms) | 126 |
“The above specification are for the standard model with manual start.”
Model and price
| Horsepower | Model | Engine Type | Starting system | Retail price |
|---|---|---|---|---|
| 11Horsepower | ZT110S plus | TVCS | Double speed hand starting | 42,600 THB |
| ZT110P plus | TVCS Pro | Double speed hand starting | 44,100 THB |
