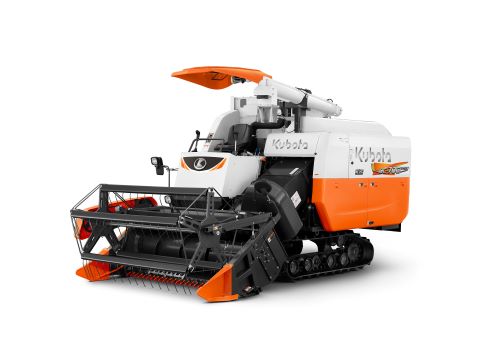

Combine harvester

Pro-level performance

Starting price

1,150,000 Baht

horsepower

69.00 horsepower

Calculate annuity

Test drive

Dealer Download catalog

GalleryCombine harvester

Application features

Performance

KUBOTA diesel engine

Kubota diesel engine, 69 horsepower, featuring direct injection with turbocharging. Provides complete combustion, high torque, and stable engine speed.
2,075 mm wide cutting header

2,075 mm wide cutting header equipped with reel tines at the front, enabling smooth and continuous crop feeding into the conveyor.
Longer grain separation screen

The separation screen length has been increased to 1,375 mm, allowing cleaner threshing and more efficient removal of impurities.
Increased spacing between radiator fins.

Helps reduce dust clogging around the radiator, improves cooling efficiency, and enables continuous operation
Continuous operation

Grain tank model with a capacity of 1 ton (1,700 liters) enables continuous operation and reduces the frequency of unloading trips.

Grain unloading auger with up to 240‑degree rotation, adjustable height from 0.9 to 4.3 meters.
Equipped with a reinforced unloading motor for enhanced durability and fast, efficient grain discharge.
Reduces grain loss at the cutting header.

The gauge wheel assembly can be independently adjusted up and down from the cutting header and is equipped with coil spring reel fingers. It is designed to efficiently harvest both standing and lodged rice.
Clean threshing with reduced grain loss in straw.

Features a dual-layer separation screen with three-directional airflow. The screens can be adjusted to up to four settings to suit different rice varieties, ensuring consistently clean and high-quality separation.
Reduces damage to the paddy field surface.

With a lightweight body of only 3,290 kg, it helps protect paddy fields and reduces the chance of getting stuck in deep mud.
Fuel tank capacity: 85 liters.

Designed for continuous operation and equipped with a lockable fuel tank cap.

Durable

Ready to operate in muddy conditions.

325 mm ground clearance for improved performance in muddy fields.
Crawler tracks designed to reduce ground pressure, ideal for wet paddy fields.
Thick, heavy-duty rollers for durability and long service life.
Large rear wheel bearings strong and durable, supporting high loads during operation

Convenience

Single control lever

Single control lever integrates lifter wheel control, left‑right steering, and header lift/lower functions into one lever.
Fuel tank full alert sound system.

An alert activates when the tank is full during refueling, preventing fuel overflow.
Improves comfort and ease of maintenance.

A comfortable footrest area enhances operator comfort, while heat insulation under the seat reduces engine heat during operation. The belts and separation screens are easy to remove and replace for convenient maintenance.
Improves comfort and ease of maintenance.

Easy-to-remove belts and screens for easy maintenance.
Cleaning access for threshing chamber.

Located on the side of the threshing chamber, allowing easier removal of clogged straw and dust.

High Value

B20

Reduces emissions, is environmentally friendly, helps lower PM2.5 particulate pollution, and supports palm oil farmers.

Specifications

Specifications
Grain container		ถังบรรจุเมล็ดข้าว
Weight		3,290
Car body size
Total length	(millimeter)	4,800
Total width	(millimeter)	2,295
Total height	(millimeter)	2,830
Drive part
Height under the car	(millimeter)	325
How to change speed		HST ระบบส่งกำลังไฮดรอลิก
Turning pattern		เบรกเลี้ยวควบคุมด้วยไฟฟ้า
Reaper header
Rice extraction system		ชุดล้อโน้ม
Width of the tusk [head tusk]	(millimeter)	2,075
Diameter x Length	((mm) x Number of fingers pulling rice (pieces))	900 x 1,903
Blade width	(millimeter)	1,980
Massage part
Massage system		ระบบไหลตามแกน (ฟันนวด)
Grain conveying system		ระบบการลำเลียงโดยใช้สกรู
Sorting method		การร่อน / การใช้แรงลม (การคัดแยกโดยใช้กระแสลม 3 ทิศทาง)
Grain drainage type
Storage tank Grain hopper capacity	(kilograms)	-
Rain container Grain hopper capacity	(kilograms (liters))	1,000 (1,700)
Storage tank		-
Grain container		240 องศา : มอเตอร์ไฟฟ้า
Warning device		อุณหภูมิน้ำหม้อน้ำ, การชาร์จไฟ, แรงดันน้ำมันเครื่องยนต์, เมล็ดข้าวเต็ม, การอุดตันของสกรูลำเลียง
Harvesting ability to fall	(degrees)	85 หรือน้อยกว่า โดยการเกี่ยวตามทิศทางการล้ม 70 หรือน้อยกว่า โดยการเกี่ยวย้อนทิศทางการล้ม

Engine specification
Series		KUBOTA V2403-M-DI-TE-CS1T
Type		ไดเร็กต์อินเจ็กชัน 4 สูบ 4 จังหวะ สูบตั้ง ระบายความร้อนด้วยน้ำ
Cylinder volume	(liter {cc})	2.434 (2,434)
Maximum horsepower / maximum rev.	(hp / rpm*)	-
Maximum horsepower (HP) / rev.	(hp / rpm*)	-
Maximum horsepower (PS) / rev.	(hp / rpm*)	50.7 {69.0} / 2,700
Net horsepower (HP) / rev.	(hp / rpm*)	-
Net horsepower (PS) / rev.	(hp / rpm*)	-
Fuel type		ดีเซล
Fuel capacity	(liters)	85
Starting system		มอเตอร์สตาร์ท
Battery	(volts / ampere-hours)	12 / 52

Harvesting equipment

Harvesting equipment	Series	Price
ชุดหัวบิดฝักข้าวโพด	CH-70	230,000 Price
corn harvesting equipment	CK70 PRO	45,000 Price
Bean Kits	BK70 BK70G	54,000 Price
